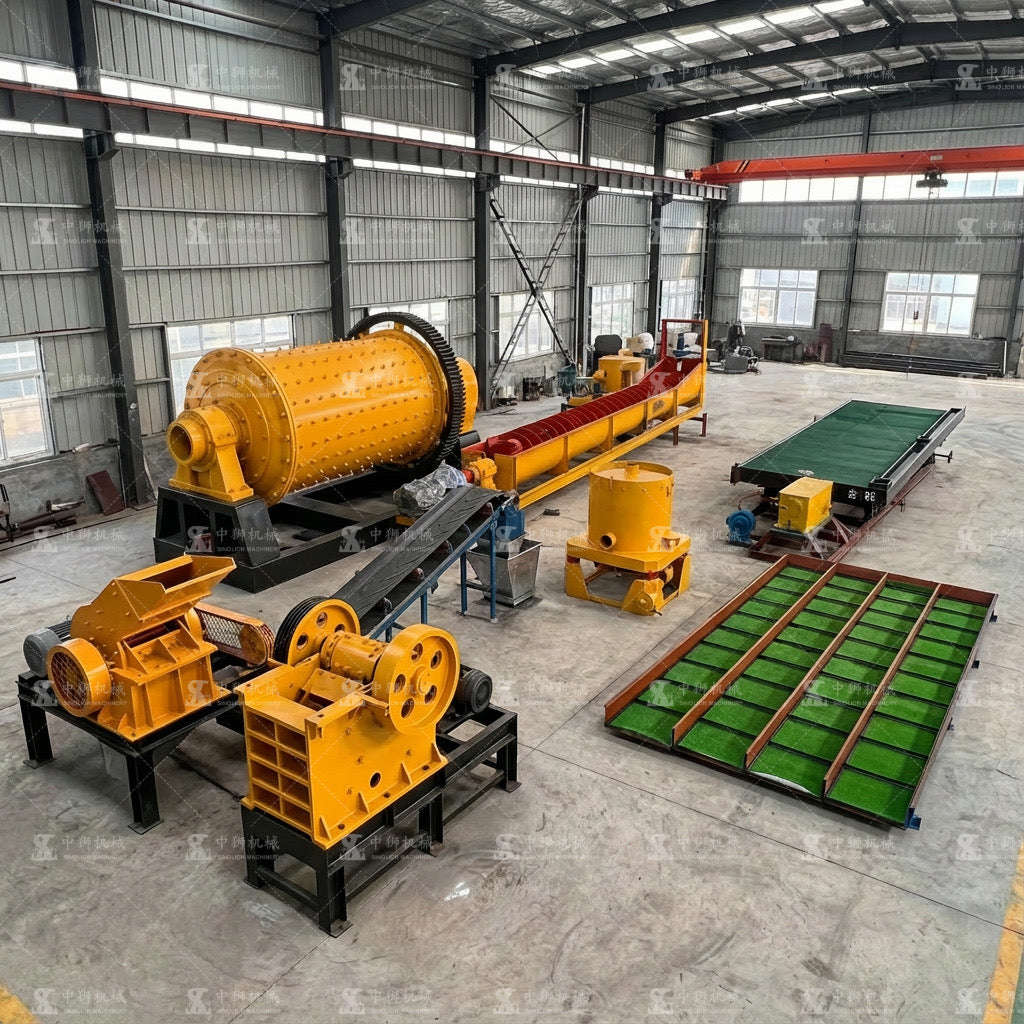

Complete Gold Ore Processing Plant (10–50 TPH) – Crushing, Milling & Gravity Recovery System

The Complete Gold Ore Processing Plant is a modular mineral processing solution designed for the efficient extraction of gold from hard rock ore. The system integrates crushing, grinding, classification and gravity recovery equipment into a coordinated processing line capable of producing high gold recovery rates.

This processing plant configuration is suitable for small to medium scale mining operations, exploration sites, and expanding gold production facilities. Each plant is engineered according to the client’s ore characteristics, desired throughput capacity, and operational requirements.

The system is designed for continuous industrial use and is manufactured using heavy-duty components capable of operating in demanding mining environments.

⸻

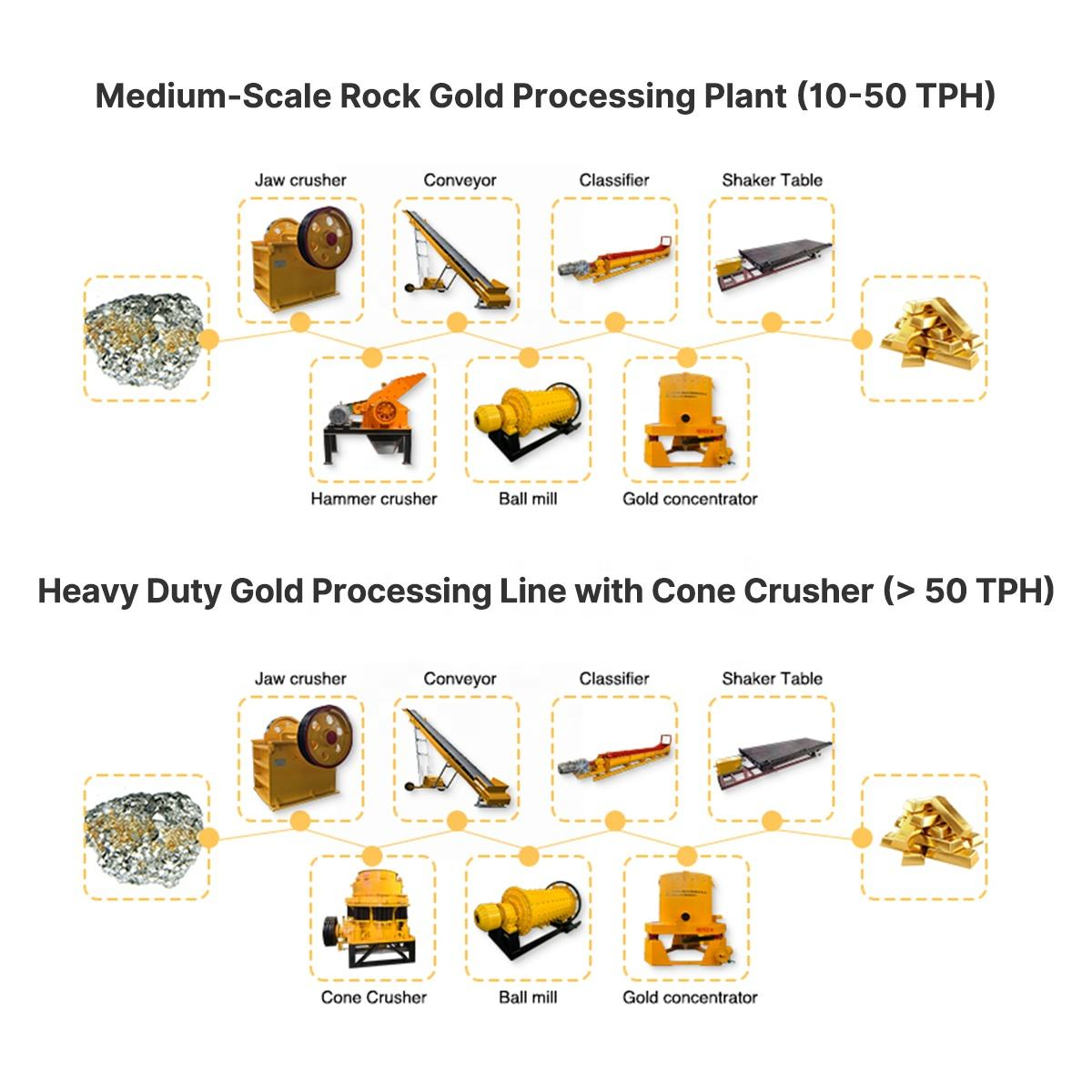

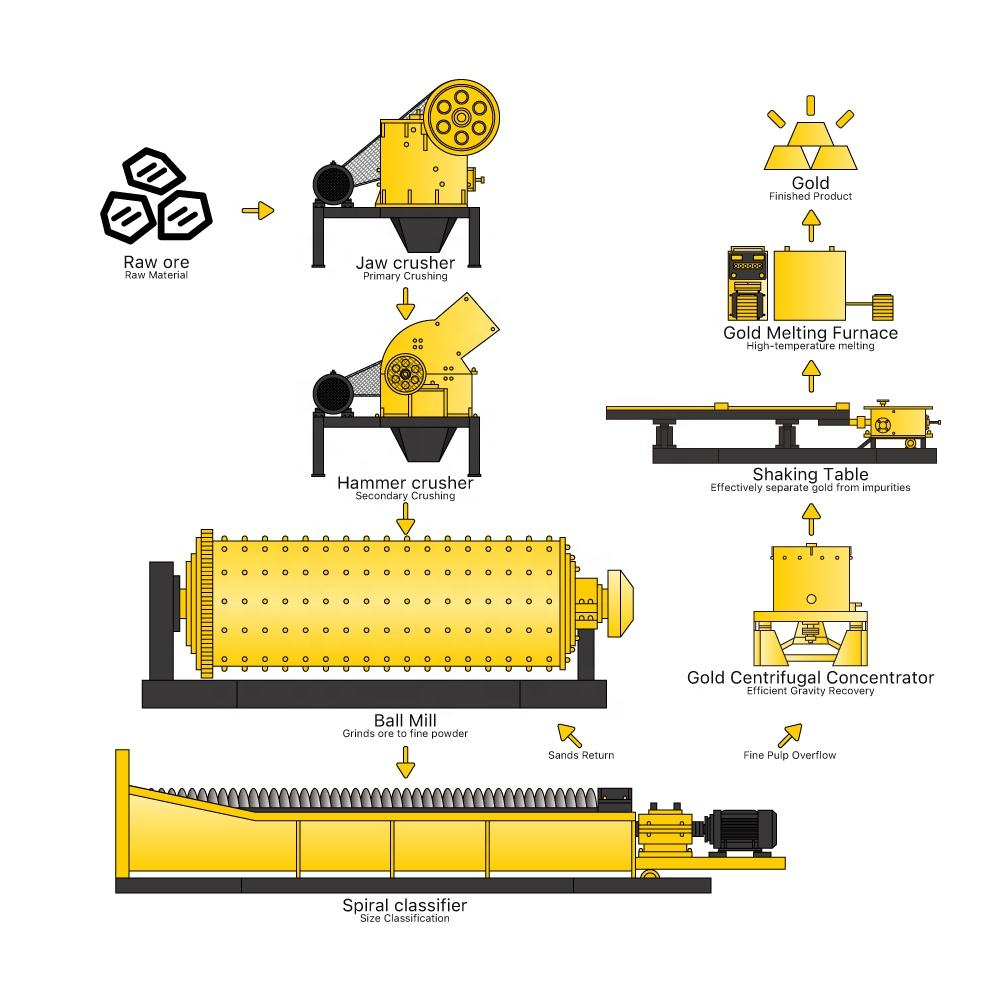

Gold Processing Plant Equipment Configuration

A standard configuration of the gold processing plant typically includes the following core equipment:

Primary Crushing Equipment
Jaw Crusher used to break raw ore into manageable feed size for secondary processing.

Secondary Crushing Equipment
Hammer Crusher or similar crushing equipment used to further reduce ore particle size.

Grinding Equipment
Ball Mill used to grind crushed ore into fine particles to release gold from surrounding material.

Classification System
Spiral Classifier used to separate particles according to size and ensure proper milling circulation.

Gravity Concentration Equipment
Centrifugal Gold Concentrator used to recover fine gold particles through high-efficiency gravity separation.

Final Gold Recovery Equipment
Shaking Table used for final separation and concentration of gold from other minerals.

Material Transport Equipment
Belt Conveyors used to move material between different stages of the processing plant.

Auxiliary Equipment
Clean Water Pump
Slurry Pump
Electrical Control Cabinet
Diesel Generator Set (optional depending on site power supply)

Gold Refining Equipment
Gold Melting Furnace used for final smelting and production of gold bars from concentrated gold material.

⸻

Production Capacity

Typical plant capacities include:

10 Tons Per Hour (TPH)
20 Tons Per Hour (TPH)
30 Tons Per Hour (TPH)
50 Tons Per Hour (TPH)

Higher capacity systems can be designed depending on project requirements.

⸻

Applications

This type of processing plant is commonly used in:

Hard rock gold mining operations
Medium scale gold production sites
Remote mining projects requiring modular equipment
Mining companies expanding existing gold processing capacity

⸻

Customization Options

Each gold processing plant can be customized according to the following factors:

Ore hardness and mineral composition
Required processing capacity
Power supply type (electric or diesel)
Site installation layout
Automation and control level
Environmental and water recycling requirements

A full equipment configuration and process design is prepared based on the specific mining project.

⸻

Estimated Price Range

Because each processing plant is customized based on capacity and configuration, pricing may vary.

Typical price range for a complete gold processing plant:

USD 65,000 – USD 250,000+

Final pricing depends on equipment configuration, plant capacity, electrical systems, and shipping destination.

⸻

Delivery and Project Support

Through Connect2China, clients receive support throughout the entire procurement process including factory coordination, equipment verification, and international delivery logistics.

Services typically include supplier coordination, equipment inspection, documentation support, and shipment organization from China to the project destination.

⸻

Request a Quotation

For a customized gold processing plant solution, please contact our team with the following information:

Desired production capacity (TPH)
Location of mining project
Ore type and hardness
Preferred power supply
Required delivery location

Our team will provide a detailed quotation and equipment configuration tailored to the project.
